ABOUT BH

The journey of BH (Beistegui Hermanos translated "Beistegui Brothers" ) initiated in Eibar (Guipuzkoa, Spain), in 1909 as a result of the genius and enterprising spirit of three brothers: Cosme, Domingo and Juan Beistegui Albistegui.

The Company, which was initially founded as an arms manufacturer, gave a radical 180-degree turn following the First World War, and set out to provide a fast, comfortable and economic means of transport for the citizens of Eibar, Spain. The industry result was the development of very light, agile and reliable bicycles, and how one of the most successful brands was born. From that point onwards and as a result of its technological advances and abiding commitment to sport, BH has achieved a series of sporting triumphs, that has contributed several innovations to the world of cycling.

By 1935, BH was firmly settled in the Spanish cycling scene. The BH team had one of the best cyclists of the day in its ranks, the Belgian Gustave Deloor(1913 - 2002), who won the first two editions of the Vuelta a España in 1935 and 1936.

To date, BH has won 7 Vueltas a España (Tour of Spain) races.

BH has been the provider of several TDF Tour de France cycling teams, such as Liberty Seguros or AG2R.

In 1959, BH moved to a more modern and larger plant in Vitoria Spain, from which it has developed high quality bicycles and components for all cycling disciplines: road, mountain, all terrain, electric and even fitness and elliptical bicycles. The technological innovations developed by BH, such as the NEO range, the Ultralight frames, the Global Concept and the Lynx double suspension for MTBs, has allowed the brand to continue being ahead of its time and offer solutions to the demands made by the two-wheel enthusiasts.

More than 100 years after incorporation, the Beistegui family are still at the head of BH and continue to maintain the essence of a company that remains true to the values it was founded upon: innovation, research and technological development; social and environmental responsibility; dynamism, commitment, reliability and trustworthiness; and, above all, its passion for bicycles. And all this with the aim of continuing to offer sport and health products to the entire world.




BH BIKES

THE 2018-19 COLLECTION


BH ULTRALIGHT EVO

BH ULTRALIGHT EVO

ROAD - PERFORMANCE

The new ULTRALIGHT EVO DISC frame is based on the Ultralight EVO.  The shape of the tubes have been optimized as well as the layout of the carbon fiber so that incorporating the disc brakes maintain the characteristic light weight and geometry of the Ultralight frames.

BH G7 DISC

BH G7 DISC

ROAD - AERO

The BH G7 DISC road bike has been designed based on a combination of wind tunnel tests and computational fluid dynamics testing. The result is a frame with an innovative aerodynamic shape, incorporating equally aerodynamic disc brakes.


BH GRAVEL X - DISC

BH GRAVEL X - DISC

GRAVEL

The GRAVEL X DISC features a triple-butted Hydroformed Aluminium 7005 frame, which seeks to strike the perfect balance between light weight and stiffness. A full carbon fork balances and smooths out your ride, no matter the road surface.

BH RX TEAM DISC

BH RX TEAM DISC

CYCLOCROSS

BH designed the new RX TEAM EVO DISC with collaboration and input from some of the most famous, experienced and demanding cyclocross riders in Europe. The frame incorporates the best design and implementation ideas of BH top-level bikes.


BH QUARTZ DISC

BH QUARTZ DISC

ROAD - ENDURANCE

The BH QUARTZ DISC is designed and built as an endurance race bike with lightweight reactive disc brakes, offering optimal performance without sacrificing stability, while providing added safety in their performance.

BH AEROLIGHT RC

BH AEROLIGHT RC

ROAD - TRIATHLON

The BH AEROLIGHT RC is the perfect triathlon bike for all levels triathletes. This highly tuned and refined bike is designed to cut through the wind, reach high speeds, take advantage of flat ground and give you the edge up hills.


BH AEROLIGHT (UCI)

ROAD - TIME TRIAL (UCI)

The BH AEROLIGHT is a UCI Pro-Tour level Time Trial bike, as seen in the Tour de France from 2016-2019. It is the perfect Time-Trial bike for top-level triathletes. This highly tuned and refined bike is designed to cut through the wind, reach high speeds, take advantage of flat ground and give you the edge up hills. Seat tube angles from 74-78 degrees, with a short 380mm chainstay, internal cable routing and very aerodynamic frame that can internally house EPS and Di2 batteries and mounting hardware.








BH ULTRALIGHT EVO DISC


PERFORMANCE ROAD

LIGHTWEIGHT WITH DISCS

The new Ultralight Evo Disc frame is based on the Ultralight Evo. Redesigned by the BH design team, the shape of the tubes have been optimized as well as the layout of the carbon fiber so that incorporating the disc brakes maintain the characteristic light weight and geometry of the Ultralight frames.

LATEST EVOLUTION OF MONOCOQUE CARBON

Using the Hollow Core Internal Molding design and development of the previous ultralight Evo and the G7 Disc allowed us to use the latest carbon technology to achieve the objectives of performance, strength, weight and feel required in a competition disc frame.

FLAT MOUNT DISC BRAKES

140/160 MM
The rear and fork of the frame have been fully redesigned to support the forces produced by disc brakes. The frame is 140 or 160 mm compatible.

WHEEL CLEARANCE

The new frame design allows clearance for up to 30 mm tire width, for those cyclists wanting extra comfort.


SPECIFICATIONS

  • FRAME - Ultralight carbon

  • COLOR - Black / with Fluo Yellow accents

  • FORK - BH Ultralight Carbon Tapered

  • STEM - FSA SLK

  • SHIFT LEVERS - Ultegra ST- R8070

  • REAR DERAILEUR - Ultegra FR/RR R8050

  • FRONT DERAILEUR - Shimano Ultegra braze-on

  • CRANK SET - Shimano Ultegra 8000 52/36T

  • CRANK ARMS - 170mm/XS, 172.5/S/M, 175mm/L/ XL

  • BB SET - FSA 386EVO

  • CASSETTE - Ultegra 11-28T

  • CHAIN - KMC X11L

  • FRONT BRAKE - Ultegra BR R8070

  • REAR BRAKE - Ultegra BR R8070

  • WHEELSET - DT Swiss PR 1400 12x100mm TA

  • TIRES - Schwalbe One 700x25

  • SADDLE - Prologo Zero II TIROX rails

  • SEAT CLAMP - BH 31.8 alloy

  • SEATPOST - BH EVO Carbon 27.2x350mm

  • HANDLEBAR - FSA SLK


PRICING


USD

ULTRALIGHT EVO DISC DI2 = SOLD OUT

ULTRALIGHT EVO DISC FRAMESET = SOLD OUT

CDN

ULTRALIGHT EVO DISC DI2 = SOLD OUT

ULTRALIGHT EVO DISC FRAMESET = SOLD OUT

One of the lightest, stiffest frames available - with no rider weight limit - the Ultralight excels on the climbs.  Powerful and stiff without being rough.  The Ultralight also descends on rails.  The frame geometry and angles deliver confidence in the turn.


GEOMETRY



PERFORMANCE


BH ULTRALIGHT WINS Mountain STAGE 8 of the Tour de France !!

TEAM DIRECT ENERGIE ULTRALIGHTS

TEAM DIRECT ENERGIE ULTRALIGHTS

LILIAN CALMEJANE enroute to STAGE 8 win

LILIAN CALMEJANE enroute to STAGE 8 win

Polka Dot jersey for BH in first MTN Stage of the Tour!

Polka Dot jersey for BH in first MTN Stage of the Tour!





BH G7 DISC


AERO ROAD / RACE

The G7 Disc road bike has been designed based on a combination of wind tunnel tests and computational fluid dynamics testing.

The result is a frame with an innovative aerodynamic shape, incorporating equally aerodynamic disc brakes.

The G7 was ridden to a Stage 8 victory in the 2017 Tour De France.

The G7 Disc road bike has been designed based on a combination of wind tunnel tests and computational fluid dynamics testing. The result is a frame with an innovative aerodynamic shape, incorporating equally aerodynamic disc brakes.


SPECIFICATIONS


FRAME: G7 Carbon
COLOR: Red
FORK: G7 Carbon Tapered
STEM: Easton EC70 SL (90mm/XS; 100mm/S, M; 11mm/L, XL)
SHIFT LEVERS: Shimano Ultegra ST- R8070
REAR DERAILLEUR: Shimano Ultegra FR/RR R8050
FRONT DERAILLEUR: Shimano Ultegra FR/RR R8050 braze-on
CRANK SET: Shimano Ultegra 52/36T (170mm/XS; 172.5/S, M; 175mm/L, XL)
BB SET: FSA 386EVO
CASSETTE: Shimano Ultegra 11-28T
CHAIN: KMC
FRONT BRAKE: Shimano R8070 Di2 HDB hydraulic flat mount
REAR BRAKE: Shimano R8070 Di2 HDB hydraulic flat mount
WHEELSET: DT Swiss PR1600 Spline 32 Disc
TIRES: Schwalbe One 700x25c
RIMS: Alloy ; Tubeless compatible
SADDLE: Prologo Zero II TIROX rails
SEAT POST: BH Carbon Semi-Integrated Aero Post 184mm (G6/G7)
HANDLEBAR: Easton EC70 Aero (40cm/XS; 42cm/S, M; 44cm/L)
STEM: Easton EA90


PRICING


USD

G7 DISC ULTEGRA DI2 = (SOLD OUT)

CDN

G7 DISC ULTEGRA DI2 = (SOLD OUT)

The 2018 G7 shown in Glossy Coral with Ultegra 8000 DI2, w/Flat Mount 140mm Disc Brakes

Flat Mount Disc brakes combined with internal cable routing blends function and style

The no-cut mast allows our BH frame designers to precisely tune the ride quality and stiffness

The rear triangle and fork have been fully redesigned to support the forces and tensions produced by the new anchoring of the disc brakes


GEOMETRY





BH-QUARTZ logo

BH QUARTZ EVO DISC


PERFORMANCE ENDURANCE

The BH Quartz range is designed and built as an endurance race bike with disc brakes, which is reactive, lighter and offers optimal performance without sacrificing stability and provides added safety in its performance.

The new Quartz Evo Disc frame is the result of a Gran Fondo frame with the performance of BH top-of-the-range frames. 100% monocoque carbon, 12 mm front and rear thru axle, Flat Mount disc brake support, 1.5” fork, internal cabling, BB386 and clearance for a tire width of up to 28 mm.



PRICING


USD

QUARTZ EVO DISC ULTEGRA = (SOLD OUT)

QUARTZ EVO DISC ULTEGRA DI2 = (SOLD OUT)

CDN

QUARTZ EVO DISC ULTEGRA = (SOLD OUT)

QUARTZ EVO DISC ULTEGRA DI2 = (SOLD OUT)

Borrowing the aerodynamic aesthetics from the G7, the Quartz is a masterful blend of all-day comfort and performance.

The taller headtube and shorter top tube combined with race-inspired performance give the Quartz remarkable acceleration without being punishing.

The taller headtube and shorter top tube combined with race-inspired performance give the Quartz remarkable acceleration without being punishing.

Graceful curves on the seatstays and the rear triangle mute harsh road feel, yet provide power and acceleration when you reach the summit.

Graceful curves on the seatstays and the rear triangle mute harsh road feel, yet provide power and acceleration when you reach the summit.


SPECIFICATIONS

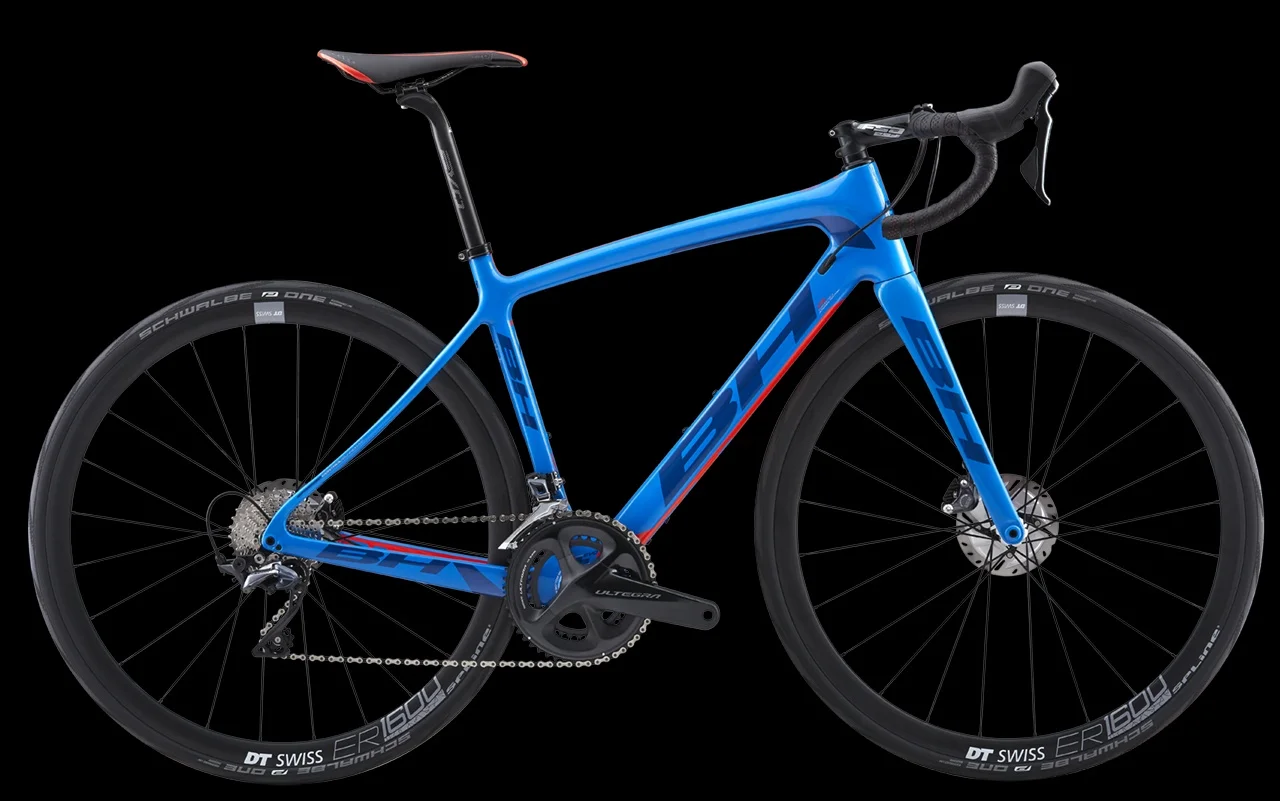

QUARTZ EVO DISC ULTEGRA

FRAME: Quartz Disc Carbon
COLOR: Blue
FORK: Quartz Disc Carbon Tapered
STEM: FSA Energy
SHIFT LEVERS: Shimano 8000
REAR DERAILLEUR: Shimano Ultegra 8000
FRONT DERAILLEUR: Shimano Ultegra 8000 braze-on
CRANK SET: Shimano Ultegra 8000 52/36T (170mm/S; 172.5mm/M, L; 175mm/XL,XXL)
BB SET: FSA 386EVO
CASSETTE: 11 Speed Shimano, 11/30
CHAIN: KMCX11L
FRONT BRAKE: Shimano 8000 hydraulic flat mount w/160 rotor
REAR BRAKE: Shimano 8000 hydraulic flat mount w/140 rotor
WHEELSET: DT Swiss ER1600 Spline
TIRES: Schwalbe One 28
SADDLE: Prologo Kappa w/Satian rails
SEAT CLAMP: BH 31.8 alloy
SEATPOST: BH EVO Carbon 27.2x350mm
HANDLEBAR: FSA SLK

QUARTZ EVO DISC ULTEGRA DI2

FRAME: Quartz Disc Carbon
COLOR: Blue
FORK: Quartz Disc Carbon Tapered
STEM: FSA Energy
SHIFT LEVERS: Shimano 8000
REAR DERAILLEUR: Shimano Ultegra 8000 DI2
FRONT DERAILLEUR: Shimano Ultegra 8000 DI2 braze-on
CRANK SET: Shimano Ultegra 8000 52/36T (170mm/S; 172.5mm/M, L; 175mm/XL,XXL)
BB SET: FSA 386EVO
CASSETTE: 11 Speed Shimano, 11/30
CHAIN: KMCX11L
FRONT BRAKE: Shimano 8000 hydraulic flat mount w/160 rotor
REAR BRAKE: Shimano 8000 hydraulic flat mount w/140 rotor
WHEELSET: DT Swiss ER1600 Spline
TIRES: Schwalbe One 28
SADDLE: Prologo Kappa w/Satian rails
SEAT CLAMP: BH 31.8 alloy
SEATPOST: BH EVO Carbon 27.2x350mm
HANDLEBAR: FSA SLK


GEOMETRY








BH GRAVEL X DISC


GRAVEL / ADVENTURE

HYDROFORMED TRIPLE CROWN 7005 ALUMINIUM

The GRAVEL X DISC features a triple-butted hydroformed aluminium 7005 frame, which seeks to strike the perfect balance between lightness and resistance. As for the fork, a 100% carbon construction has been opted for, which serves to offer the front of the bike good absorption and stiffness.

INTERNAL CABLE GUIDE

Innovative system that can be integrated into mechanical and electronic systems
The innovative cable guide system of the Gravel X can be integrated into either mechanical or electronic systems, guaranteeing maximum protection and reliability and making replacements very easy.


GEOMETRY DESIGNED FOR LONG DISTANCES

Riding comfort and stability, high steering tube and large distance between axles
The geometry of the Gravel X is designed for the rider to spend many hours in the saddle, with comfort and riding stability afforded priority. These qualities are achieved as a result of the bike's high steering stem, a compact sloping top tube and its long wheelbase.

YOUR PERFECT TRAVEL COMPANION

The GRAVEL X allows supports to be mounted on the frame and the fork for luggage racks.

12 MM THRU AXLE

Clearance for a tyre width of up to 38 mm; the optimal measurement for greater rigidity and safety, optimising the position of the brake
Both wheels boast 12mm thru axles to provide the whole frame with greater stiffness and security, combining perfectly with the Gravel X's disc brakes.


SPECIFICATIONS


GRAVEL X DISC ULTEGRA

  • FRAME - Gravel X Alloy

  • COLOR - Orange

  • FORK - Gravel X Carbon Tapered

  • STEM - FSA Energy

  • SHIFT LEVERS - Ultegra 8000

  • REAR DERAILLEUR - Ultegra 8000

  • FRONT DERAILLEUR - Ultegra braze-on

  • CRANK SET -Ultegra 50/34T

  • CRANK ARMS - 170mm/XS, 172.5/S/M, 175mm/L/XL

  • BB SET - FSA 386EVO

  • CASSETTE - Ultegra 11-32T

  • CHAIN - KMC X11L

  • FRONT BRAKE - Ultegra 8000

  • REAR BRAKE - Ultegra 8000

  • WHEELSET - DT Swiss C1800

  • TIRES - Schwalbe G-One 40

  • SADDLE - Velo 2059

  • SEAT CLAMP - BH 31.8 alloy

  • SEATPOST - BH EVO Carbon

  • HANDLEBAR - FSA NS Adventure Compact


PRICING


USD

BH GRAVEL X DISC ULTEGRA = SOLD OUT

BH GRAVEL X DISC TIAGRA = SOLD OUT

CDN

BH GRAVEL X DISC ULTEGRA = SOLD OUT

BH GRAVEL X DISC TIAGRA = SOLD OUT

GRAVEL X DISC TIAGRA

  • FRAME - Gravel X Alloy

  • COLOR - Orange

  • FORK - Gravel X Carbon Tapered

  • STEM - FSA Energy

  • SHIFT LEVERS - Shimano Tiagra

  • REAR DERAILEUR - Shimano Tiagra

  • FRONT DERAILEUR - Shimano Tiagra braze-on

  • CRANK SET - Shimano Tiagra 50/34T

  • CRANK ARMS - 170mm/XS, 172.5/S/M, 175mm/L/XL

  • BB SET - FSA 386EVO

  • CASSETTE - Shimano 11-32T

  • CHAIN - KMC X11L

  • FRONT BRAKE - TRP Spyre

  • REAR BRAKE - TRP Spyre

  • WHEELSET - Alex Boondocks 5

  • TIRES - Schwalbe G-One 40

  • SADDLE - Velo 2059

  • SEAT CLAMP - BH 31.8 alloy

  • SEATPOST - FSA V-Drive

  • HANDLEBAR - FSA NS Adventure Compact



GEOMETRY






BH RX TEAM DISC


CYCLOCROSS

BH designed and manufactured the new RX Team Evo frame with collaboration and input from some of the most famous, experienced and demanding cyclo-cross riders in Europe. The frame also incorporates the best design ideas that BH has already implemented and integrated into its top-level frames.

FLAT MOUNT SHIMANO DISC BRAKE

The new Shimano Flat Mount standard offers lightweight, aerodynamics and built-in integration in the frame without the need of adaptors or visible screws, allowing easy adjustment even in the rear triangle.

OVERSIZED FORK

Providing the necessary rigidity and precision for competition. The wheel arch has been oversized to avoid accumulation of dirt.


SPECIFICATIONS


FRAME: RX Team Carbon
COLOR: Black / Orange
FORK: RX Team Carbon Tapered
STEM: FSA Energy
SHIFT LEVERS: Shimano Ultegra 8000
REAR DERAILLEUR: Shimano Ultegra 8000
FRONT DERAILLEUR: Shimano Ultegra 8000 braze-on
CRANK SET: Shimano Ultegra 8000 46/36T (170mm/S; 172.5mm/M; 175mm/L, XL)
BB SET: FSA 386EVO
CASSETTE: Shimano 105 11-32T
CHAIN: KMC X11 EPT Anti-Rust
FRONT BRAKE: Shimano Ultegra 8000 160mm rotor and Jagwire compressionliss housing
REAR BRAKE: Shimano Ultegra 8000 160mm rotor and Jagwire compressionliss housing
WHEELSET: DT Swiss c1800, 100x12mm Front, 142x12mm Rear
TIRES: Schwable X One 33
SADDLE: Prologo Kappa 3
HANDLEBAR: FSA Adventure Compact


PRICING


USD

RX TEAM DISC ULTEGRA = SOLD OUT

RX TEAM DISC FRAMESET = SOLD OUT

CDN

RX TEAM DISC ULTEGRA = SOLD OUT

RX TEAM DISC FRAMESET = SOLD OUT




All new for 2018 - the RX Team is throughaxle and disc-brake only.

Designed with the highest level of cross competition in mind, the RX Team corners and accelerates beyond compare.

The fork and rear triangle has been widened to accommodate wider tires and mud clearance when conditions turn nasty.


GEOMETRY

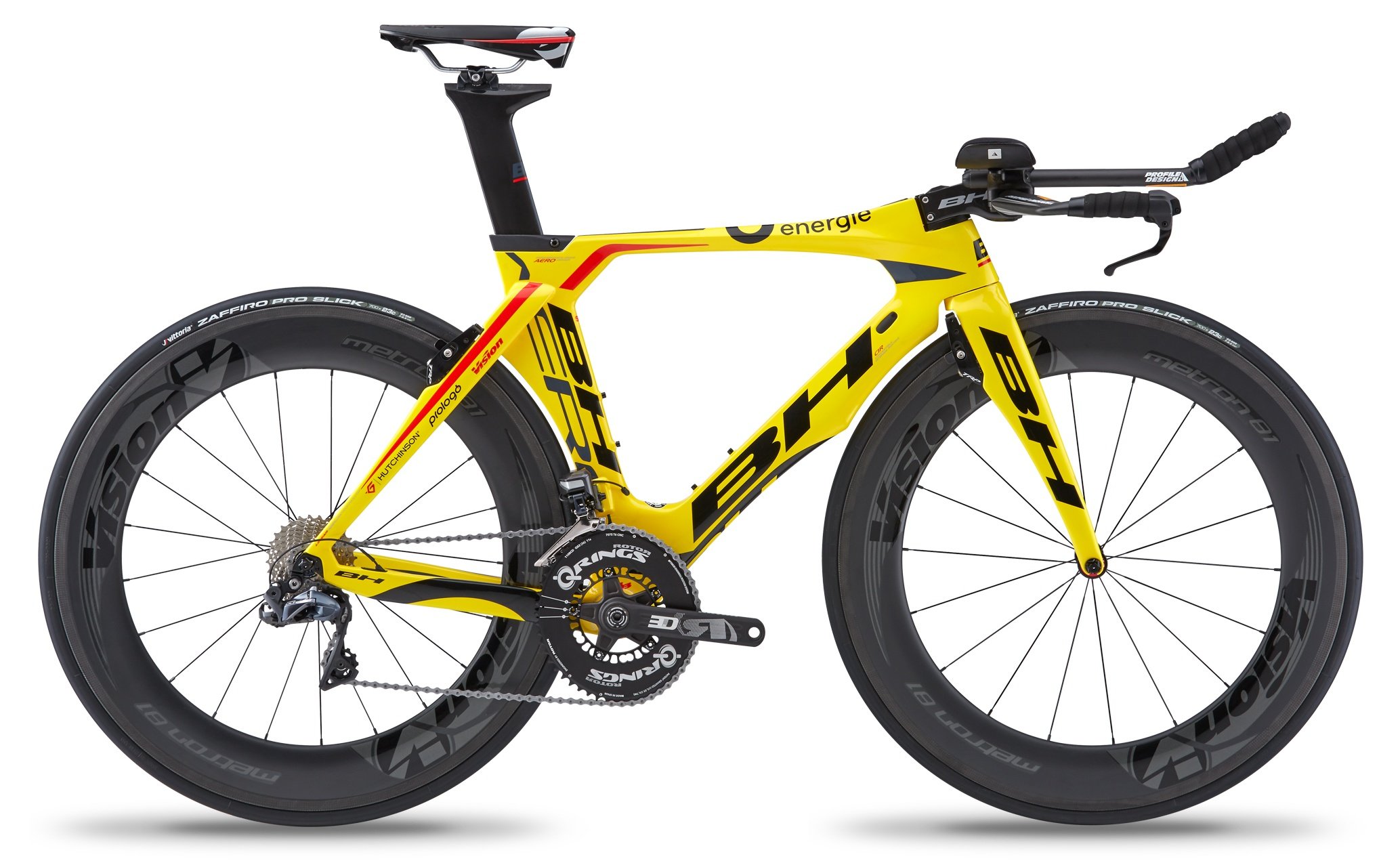

BH AEROLIGHT RC




LONG DISTANCE AERODYNAMICS. INNOVATIVE AND FUNCTIONAL.

World-class triathlon and time trial performance within reach. The Aerolight RC maximizes aero advantage while reducing weight and delivering confidence-inspiring handling. Increased adjustability allows riders to dial in both fit and positioning to suit a wide range of riders.

·        Convertible internal cable routing

·        Asymmetrical chainstays

·        BB386 EVO

It incorporates a large amount of the R&D innovations of the Aerolight frame. The seatpost can be adjusted to a virtual angle between 74§ and 78§ just like the Aerolight. The BB386 EVO, and its less aggressive geometry allows the triathlete a perfect biometric position and allows incorporating any stem. Just as in the Aerolight, the Kamm-Tail design of the seatpost optimizes wind flow on first contact.

A TECHNICAL FRAME THAT SATISFIES YOUR NEEDS FROM THE VERY BEGINNING

The Aerolight RC is a machine built to compete in triathlons. It was designed thinking about the aerodynamics of the triathlete, to reach maximum speeds with less effort. Therefore, it includes some of the greatest technological and design innovations of the Aerolight, a reference frame in the triathlon market.

HCIM (HOLLOW CORE INTERNAL MOLDING) CONSTRUCTION. PERFECT BIOMECHANICS POSITION

The Aerolight RC line is built out of 100% carbon, based on the same principles as the other top of the line BH frames like the Ultralight or the Aerolight. It was designed to achieve optimal air penetration and perfect biomechanical positioning. This patented manufacturing process uses a combination of carbon fibers of high, medium and low modulus in order to achieve the high quality standards demanded by BH. In all Aerolight RC tube cross-sections, formulas have been applied and tests and analyses have been undertaken to maximize the frame?s aerodynamics without affecting its ride quality.

BB386EVO, 86.5 MM MAXIMUM TORSION RIGIDITY

BH oversized the bottom bracket in order to incorporate the BB386EVO system, which ensures greater torsional stiffness and increased rider efficiency. This innovative design allows the width of the external bottom bracket to be increased to 86.5 mm, providing greater flexibility to produce a superior frame design. The combination of the oversized bottom bracket design, allowing the incorporation of the BB386EVO system, together with the position of the chain stays makes the Aerolight frame appropriate for even the widest wheels in the sector.

1-1/8" STEERER TUBE COMPATIBLE WITH A WIDE RANGE OF STEMS

The narrowness of the head set, at a mere 1 1/8? both in its upper and lower part, lowers the coefficients of air friction. In addition, it is compatible with any standard stem on the market.

KAMM-TAIL DESIGN

The cross-section uses the aerodynamic Kamm-Tail design, optimizing the passage of air across the seat. This design allows for adjustment of the seat angle in 4 ways so that the racer can attain a more relaxed or a more aggressive posture, depending on the type of competition that he/she is facing


PRICING

AEROLIGHT RC ULTEGRA Di2 = SOLD OUT





BH AEROLIGHT

UCI PRO-TOUR EDITION




PURE TRIATHLON

The BH Aerolight frame is a clear and strong contender for Triathlon. Jointly developed with the BH Triathlon team, the BH Aerolight full Monocoque carbon frame with its aggressive, lightweight design, maximizing aerodynamics without compromising rigidity.

It offers a wide range of settings that adapt to the needs of each triathlete. The integrated stem allows 4 positions, the seatpost offers a virtual angle between 74° and 80º, and the DI2 can be integrated and hidden in the head tube.

The front area has been designed to join the frame, enveloping the front wheel and hiding the front brake to achieve a flat 100% aerodynamic surface that stabilizes the wind from the first contact.

MARK THE DIFFERENCE IN COMPETITION

The Aerolight is the ideal bicycle for top triathletes. It is a bike designed to slice the wind, reach top speeds, explode across the flats and make the differences in uphill climbs.

The overall design lines are all the results of numerous brainstorming sessions held by the technical and sports sections of BH in order to attain the most advanced, spectacular and top of the line triathlon bicycle possible.


100% CARBON MONOCOQUE

HCIM (HOLLOW CORE INTERNAL MOLDING)

The Aerolight (UCI Pro-tour) frame has been manufactured in accordance with the principles of the other top BH frames, such as the Ultralight and G6 models.

In building the Aerolight frame, a number of innovative technologies have been implemented into the overall development process in order to control and optimize the ideal carbon wall thicknesses for the different locations within the frame.

The most appropriate carbon layups are developed and then applied to a minimal carbon layer molding technique in order to ensure extreme rigidity in a lightweight frame design.

This proprietary manufacturing process uses a combination of high and medium modulus materials in order to attain the high standards demanded by BH.


BB386 EVO. MAXIMIZING RIGIDITY AND RESISTANCE

BH oversized the bottom bracket in order to incorporate the BB386EVO system, which ensures greater torsional stiffness and increased rider efficiency. This innovative design allows the width of the external bottom bracket to be increased to 86.5 mm, providing greater flexibility to produce a superior frame design.

The combination of the oversized bottom bracket design, allowing the incorporation of the BB386EVO system, together with the position of the chain stays makes the BH Aerolight frame appropriate for even the widest wheels in the sector.

AERODYNAMIC SEATPOST DESIGN

The aerodynamic seat tube design, allowing for a seat angle of between 74º and 78º allows the rider to adopt a more relaxed or more aggressive positioning.


POWER ALIGNED WITH THE HORIZONTAL TUBE.

PERFECT COUPLING

The headtube design is built around an 1 1/8” bearing both at the top and bottom race. It has been manufactured in a narrow, stylized shape in order to offer the frame a more aggressive, aerodynamic form.

The headtube surface seamlessly blends into the airfoil inspired fork blades which house the cutout for the rear mounted front brake design.


AERO GEOMETRICS

The geometry of the new frame offers a wide range of adjustments that may be modified based on needs. The new Aerolight maintains the size of the rear chainstays at 380 mm, notably increasing the cyclist’s responsiveness and explosiveness while in motion.





GEOMETRY

BH AEROLIGHT (2016-2019)



FOR SALE


BH AEROLIGHT

(available for sale as of 20-NOV-2023, save up to 30% off Retail!)

Size = LG (54cm)

  • FITS : 5’10” to 6’1”

BRAND NEW - Custom build

  • UCI Pro-Tour carbon frameset (2018 edition - new)

    • accepts both aero TRP V-brakes and dual-pivot Rim / Direct-Mount brakes

    • BB386 - FULL ceramic bearings installed

    • (includes optional EPS/Di2 internal battery mount h/w)

    • full internal cable routing

  • 2022 Campagnolo Super Record Groupset :

  • Crankset, Cassette, Chain, Shifters / Levers, Front Derailleur

  • 2022 Campagnolo Record Rear Derailleur (w/ premium bearings)

  • 2022 Campagnolo Record/Super Record DM Direct-mount Brakeset

  • 2022 Campagnolo BORA WTO 60 carbon wheelset

    • Ceramic bearings installed

  • Schwalbe PRO ONE 700c x 23mm tubeless racing tires

  • ZIPP VUKA carbon aerobars w/ ZIPP SLR drop bar

  • BH carbon aero stem +/- 17 degrees

  • SQLAB USA model 612 Ergowave racing saddle

  • Includes spare set of TRP TT01/02 aero brakes

BH AEROLIGHT
